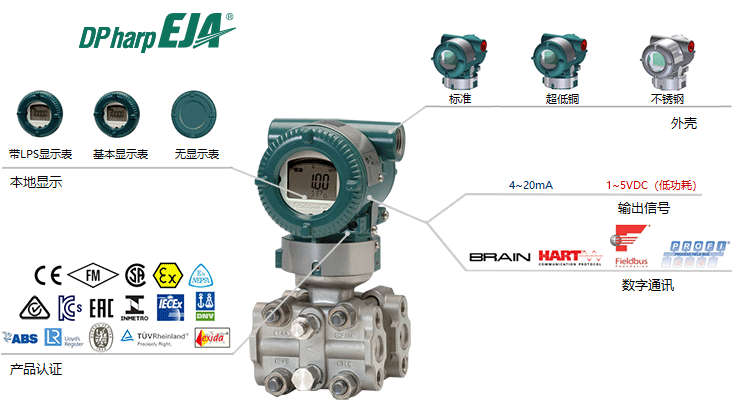

EJA120E Micro differential pressure transmitter

EJA120E high performance micro differential pressure transmitter adopts monocrystalline silicon resonant sensor technology, which is suitable for measuring the flow, liquid level, density and pressure of liquid, gas or steam. EJA120E converts the measured differential pressure into 4 ~ 20mA DC current signal output, and has the functions of fast response, remote setting and self diagnosis.

EJA120E features include:

Accuracy ± 0.2% (optional accuracy ± 0.09%)

Stability ± 0.3%/1 year

Response time 150 ms

TUV and exida SIL 2/3 certification

Local parameter setting (LPS)

True draft range design

Provide Hart 5/7, Hart (1~5v DC) low power consumption, FF fieldbus, PROFIBUS PA, brain and other communication protocols.
