1. Description of flowmeter composition system
Fischer porter has advanced production technology of electromagnetic flowmeter, and its products have been widely used for accurate measurement in sewage, pulp, slurry, pulp and other industries.
DM series electromagnetic flowmeter is mainly used to detect pulp, coal water slurry, slurry, cement slurry (including fine particles), mortar and other high viscosity homogeneous media, as well as liquids that generate noise due to physical or electrochemical reactions or media with the influence of magnetic fields around.
2. Main technical parameters of flowmeter
(1). Model description
Dm43f (all-in-one non explosion proof)
Dm41f (split type non explosion proof)
Dm47f (integrated explosion-proof)
Dm48f (split explosion-proof)
(2). Technical parameters
Instrument model | DM |
Accuracy | ±0.5% Measured value (standard) ±0.2% Measured value (high accuracy) |
Medium temperature | -25℃～+65℃(soft rubber lining)，-25℃～+100℃(hard rubber lining)， -25℃～+75℃(polyurethane rubber lining)，-30℃～+250℃(silicone fluororubber lining) -25℃～+180℃(PTFE lining, PFA lining) |
Ambient temperature | －20 to＋60℃ |
Ambient humidity | 5-90%RH (Relative humidity) |
Dielectric conductivity | ≧5ｕs/cm |
Excitation mode | Standard type: low frequency excitation Slurry type: high frequency excitation |
Installation method | All in one flange connection Split flange connection |
Electrode material | 316, 316L, HC, Hb, Ti, Ta, Pt others |
Lining material | Polychloroprene rubber, polyurethane rubber, silicone fluororubber, PTFE, PFA, etc |
Degree of protection | Sensor IP67 (standard) / IP68 (submersible) Converter IP67 |
Power supply | 85-253 VAC 50 HZ 18-36 V DC |
Explosion proof grade | Exd ia[ia Ga]q ll CT6 Gb |
Cable interface | M20 × 1.5, 1/2 "NPT, others |
Telecommunication | Hart-Protocol agreement, RS485, Other communication protocols |
3. Technical characteristics and performance of flowmeter
(1). DM series intelligent electromagnetic flowmeter is intelligent, which is embodied in:
● the converter is equipped with a digital microprocessor, and each function menu is programmed. The flowmeter program, flowmeter parameters or flowmeter range can be checked or modified through the LCD.
● display and keys: backlit large screen LCD display, which can display instantaneous flow, cumulative flow, differential value and alarm display (excitation open circuit alarm, empty pipe alarm, flow over limit alarm).
● power failure: the instrument is internally designed with a non power failure clock, which can store 16 power failure records.
(2). The liquid crystal display of DM series intelligent electromagnetic flowmeter can display the instantaneous flow, cumulative flow and various functional parameters of the medium.
(3). DM series intelligent electromagnetic flowmeter modifies the instrument parameters as follows:
● it can be modified by three manual keys on site
● on site, it can be modified by manual operator through HART protocol
(4). DM series intelligent electromagnetic flowmeter has high explosion-proof grade:
Increased safety Exd ia[ia ga]q ll CT6 GB
(5). DM series intelligent electromagnetic flowmeter has high protection grade:
Protection grade: IP67 (standard type), IP68 (diving type)
(6). DM series intelligent electromagnetic flowmeter has complete materials
Electrode materials: 316, 316L, HC, Hb, Ti, Ta, Pt others
Lining materials: polychloroprene rubber, polyurethane rubber, silicone fluororubber, PTFE, PFA, etc
Others: it can be manufactured according to users' needs
(7). Communication protocol: HART protocol, RS485, other communication protocols
4. Application cases

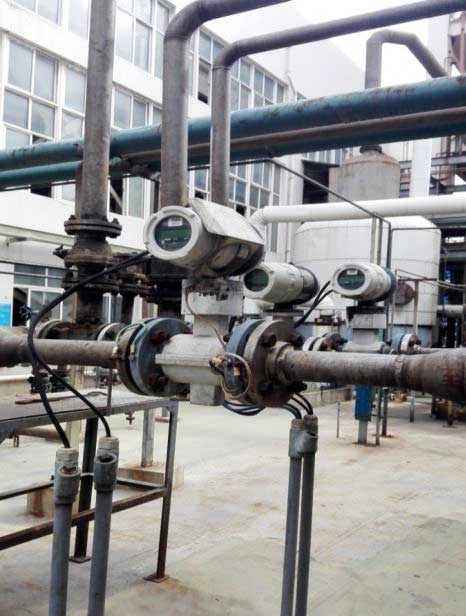

Measurement of high pressure water medium by Sinopec Jianghan Oilfield Company
Kunming Salt Mine Project of Yunnan Salt and Chemical Co., Ltd
