Product details:

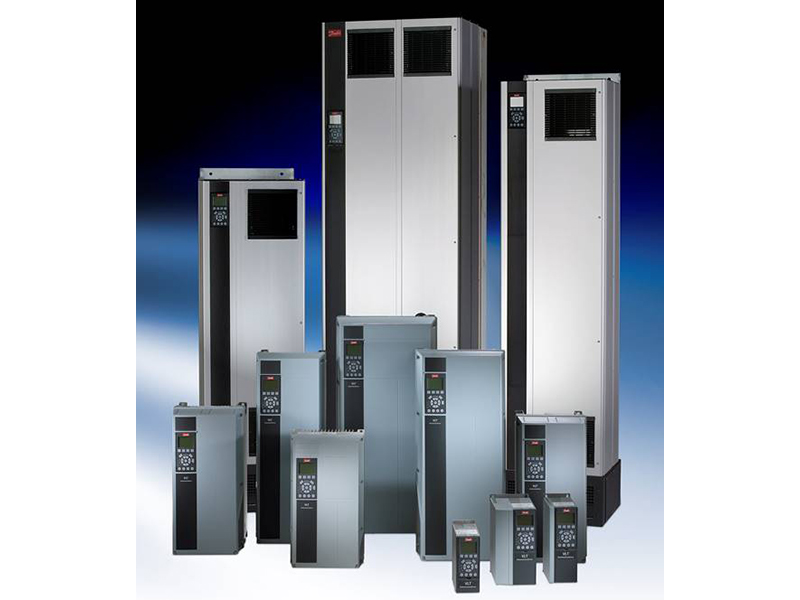

VLT ®  Automationderive is dedicated to variable speed control of all asynchronous motors and permanent magnet motors. It can be divided into standard type (FC 301) and advanced high dynamic type (FC 302), and the latter provides more functions. It helps save energy, improve flexibility, reduce costs associated with accessories and maintenance, and optimize process control of machines or production lines in any industry.

VLT automationderive is based on a flexible modular design concept and is designed to provide multifunctional control. Its rugged structure ensures the longest normal operation time. It is equipped with a variety of industry standard functions, which can be extended through the "plug and play" option. The user-friendly graphic control panel ensures that the frequency converter is easy to set up and operate, and saves the debugging process and operation cost.

The protection level of the chassis can reach IP 66 (depending on the power specification). The built-in DC reactor and RF interference filter in all frequency converters protect the installed system by minimizing harmonic distortion and electromagnetic interference.

VLT automationderive can also be used with applications that require high-precision positioning and synchronization operations. Nowadays, the integrated motion controller (IMC) function can be configured in the software of the frequency converter. No additional modules or hardware need to be installed.

All frequency converters are fully tested in the factory. They require very little maintenance and thus achieve a rapid return on investment.

Supply voltage and power range

3 x 200-240 V... 0.25-37 kW

3 x 380-500 V... 0.37 kW – 1.1 MW

3 x 525-600 V... 0.75-75 kW

3 x 525-690 V... 1.1 kW – 1.4 MW

Low harmonic frequency converter

3 x 380-480 V... 132-710 kW

12 pulse frequency converter

3 x 380-690 V... 250-1200 kW

Features and benefits

Since there is no capacity reduction at the temperature of 50 ° C, the demand for cooling or capacity increase is reduced

Reduce the demand for PLC capacity with intelligent logic control

Due to the high wear resistance of the frequency converter, the low life cycle cost is ensured

With the cooling of the back air duct of frames D, e and F, the service life of electronic components is extended

Plug in technology is adopted to facilitate debugging and upgrading

Because the integrated motion controller can be used in the whole product series, high-precision positioning and synchronization are realized

Intelligent heat dissipation management, safe stop and safe torque off functions ensure the safe and energy-saving operation of the frequency converter

application

Conveyors, positioning and synchronization, cranes, mixers, centrifuges, and packaging and stacking machinery.

PC Tools

VLT ®  Motion Control Tool MCT 10

VLT ®  Motion Control Tool MCT 31

SISTEMA

Danfoss HCS (harmonic calculation software)

Danfoss Servo Sizer

VLT ®  Energy Box
